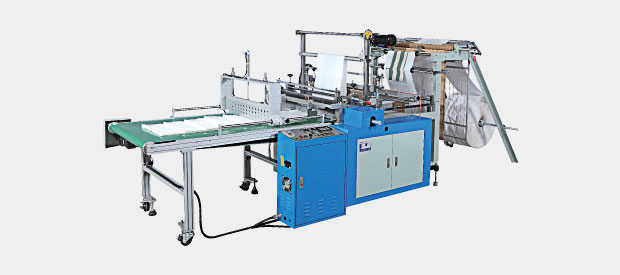

High-Efficiency Fully Automatic Bottom Sealing & Cutting machine
MODEL: SPM-700A, SPM-800A, SPM-1000A, SPM-1200, SPM-1500
Features
- For bottom-sealing bags.
- Timing belts in lieu of chains provide smooth power and quieter operation.
- Clutch and brake made in Japan.
- With auto stop motion device for the temp-drop 4-6 degree.
- With auto stop motion device for the bag become super imposed.
- With auto stop motion device for the film empty
| Model | Bag size (mm) Max | Production Speed Bags/min Max. | Thickness of film (mm) | Heater | Power required | |
|---|---|---|---|---|---|---|
| Width (mm) | Length (mm) | |||||
| SPM-700A | 700 mm |
1200mm | 40~140 bags/min |
0.008~0.15 | 2000W | 3 KW |
| SPM-800A | 800 mm |
1200mm | 40~130 bags/min |
0.008~0.15 | 2000W | 3.5 KW |
| SPM-1000A | 1000 mm |
2000mm | 40~120 bags/min |
0.008~0.15 | 2000W | 4 KW |
| SPM-1200 | 1200 mm |
2500mm | 40~110 bags/min | 0.01~0.25 | 2200W | 4 KW |
| SPM-1500 | 1500 mm |
2500mm | 30~90 bags/min | 0.01~0.25 | 2500W | 6 KW |
