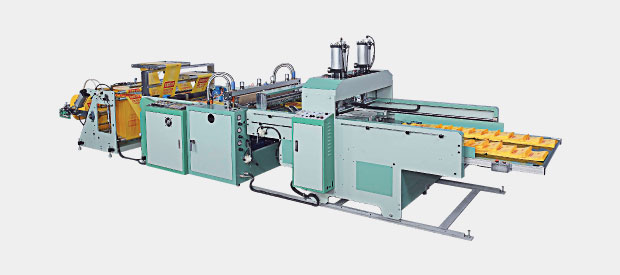

High-Efficiency Fully Automatic T-shirt Bag Making Machine Servo-Drive System (Non-stop)
MODEL: SPV-850, SPV-1000
Features
- Micro- computer controller increases aped and accuracy; user-friendly panel for easy operation.
- Bags can be loaded smoothly and correctly while servo is running in s-curve at high speed.
- Normal or heating extension mode selections.
- Specially designed for huge production of non-tension sealed and printed T-shirt bags.
- Servomotor bag delivery system is equipped with twin photocell device.
- Independent four-line temperature control system.
- Machine stops automatically when bags are jammed, overlapped or printed is in inaccurate positions.
- Pneumatic / hydraulic-type puncher is adopted on the in-line punching system to ensure bundle of bags is punched out neatly and quietly.
| Model | Bag size (mm) Max | Production Speed Bags/min Max. | Thickness of film (mm) | Heater Kw | Power required | Air required | |
|---|---|---|---|---|---|---|---|
| Width (mm) | Length (mm) | ||||||
| SPV-850 | 380mm × 2 | Max. 700 | 250 cycle/ max (each line) |
0.01~0.08mm | 7 | 14 | 7HP |
| SPV-1000 | 450mm × 2 | Max. 700 | 250 cycle/ max (each line) |
0.01~0.08 | 8 | 16 | 8HP |
