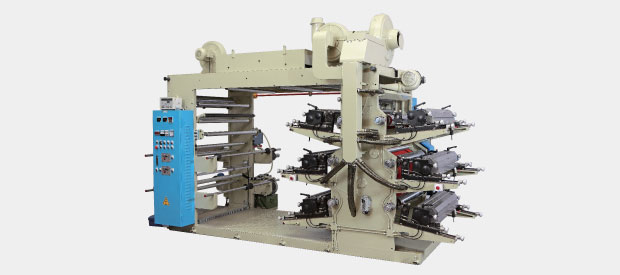

6-COLOR FLEXOGRAPHIC HIGH SPEED PRINTING MACHINE
MODEL: SPR-6C/500 HS, SPR-6C/800 HS, SPR-6C/1000 HS, SPR-6C/1200 HS
Features
- This machine is suitable to printing of rolling paper. Packing paper glass paper, P.P., P.E. and Polystyrene bags.
- Robust construction minimizes space occupied and enhances productivity.
- Using hydraulic system to set the printing plates, it is easy and accurate. There will be no defects when starting and stopping the machine.
- The built-in impression counter can be presented and stops the machine automatically when the desired quality of prints is acquired, and starts again on reset.
- The throw-off or on action of printing cylinder is hydraulically operated. The interlocking mechanism keeps the inking rolls running to avoid drying of ink on such rolls, accomplishing the throw-off of printing cylinder.
- Using a hot-air dryer and a cold-air fan simultaneously, it makes the production more speedy. The dryer and fan will shut down automatically when machine stops, it makes this machine more safe.
- The built-in stops the machine automatically.
| Description | Printing width (mm) | ||
|---|---|---|---|
| 500 | 800 | 1000 | |
| Color printed | 6 | ||
| Printing speed width (max.) (M/mm.) | 70 - 80 | ||
| Film passing width (max.) (mm) | 600 | 900 | 1100 |
| Printing length (mm) | 200 - 800 | ||
| Printing possibility | 0+6, 1+5, 2+4, 3+3 | ||
| Main motor (HP) | 5 | 7.5 | 7.5 |
| Heater (KW) | 1.5 × 16 | 1.5 × 19 | 1.5 × 22 |
| Blower for heater (HP) | 1/2 HP × 1, 2HP × 2, 5HP × 1 | 1/2 HP × 1, 7.5HP × 1, 2HP × 2 | |
| Hydraulic pump motor (HP) | 1 | ||
| Ink roll motor (HP) | 1/2 | ||
| Torque motor (KG) | 30 × 2 | 50 × 2 | |
| Total power (KW) | 25 | 28 | 30 |
