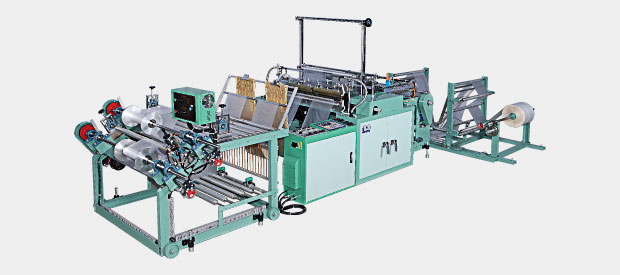

Synchronized Perforating & Sealing on Roll Bags Machine (Split Servos)
MODEL: SPS-700 + TF, SPS-800 + TF, SPS-1000 + TF
Features
- Optional: Triangle Folding Devices.
- Specially designed for garbage bags, printed bags, and star seal bags.
- Top and bottom heating temperature precisely controlled to ensure secure sealing.
- Spot cutter made of special materials is durable, providing spot-cut bags easy to tear.
- Split servos for double spindles operate independently.
- Easy to operate; spot-cutting and carried out simultaneously.
- Double photoelectric cells for printer enable this machine to stop automatically when the printing position is not correct.
- Stop motion device when the film empty.
| Model | Bag size (mm) Max | Production Speed Bags/min Max. | Thickness of film (mm) | Heater | Power required | Air required | |
|---|---|---|---|---|---|---|---|
| Width (mm) | Length (mm) | ||||||
| SPS-700 | 100-320 |
200- 2000 | 20-200 cycle/min (each line) |
0.01~0.5 mm | 4 KW | 10HP | 1HP |
| SPS-800 | 100-380 |
200- 2000 | 20-200 cycle/min (each line) |
0.01~0.5 mm | 4 KW | 10HP | 1HP |
| SPS-1000 | 100-480 |
200- 2000 | 20-200 cycle/min (each line) |
0.01~0.5 mm | 4 KW | 10HP | 1HP |
