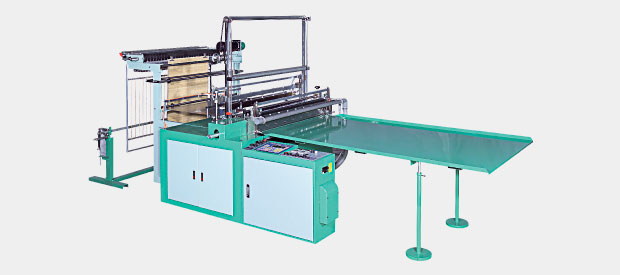

High-Efficiency Fully Automatic Sealing & Cutting Machine With Servo-Drive System
MODEL: SPO-700A, SPO-800A, SPO-1000A, SPO-1200, SPO-1500
Features
- Design for bottom sealing bags.
- Timing belts in lieu of chains provide smooth power.
- With auto stop motion device for the bag become superimposed
- With auto stop motion device for the temp-drop 4-8 degree
- With auto stop motion device for the film empty
| Model | Bag size (mm) Max | Production Speed Bags/min Max. | Thickness of film (mm) | Heater Kw | Power required | |
|---|---|---|---|---|---|---|
| Width (mm) | Length (mm) | |||||
| SPO-700A | Max.700 | 200-1200 | 60-180 bags / min (each line) |
0.01~0.15 mm | 2 KW | 8 KW |
| SPO-800A | Max.800 | 200-1200 | 60-180 bags / min (each line) |
0.01~0.15 mm | 2 KW | 8 KW |
| SPO-1000A | Max.1000 | 200-2000 | 50-150 bags / min (each line) |
0.01~0.15 mm | 3 KW | 9 KW |
| SPO-1200 | Max.1200 | 200-2000 | 50-140 bags / min (each line) |
0.01~0.15 mm | 3 KW | 12 KW |
| SPO-1500 | Max.1500 | 200-2000 | 50-140 bags / min (each line) |
0.01~0.15 mm | 3 KW | 14 KW |
